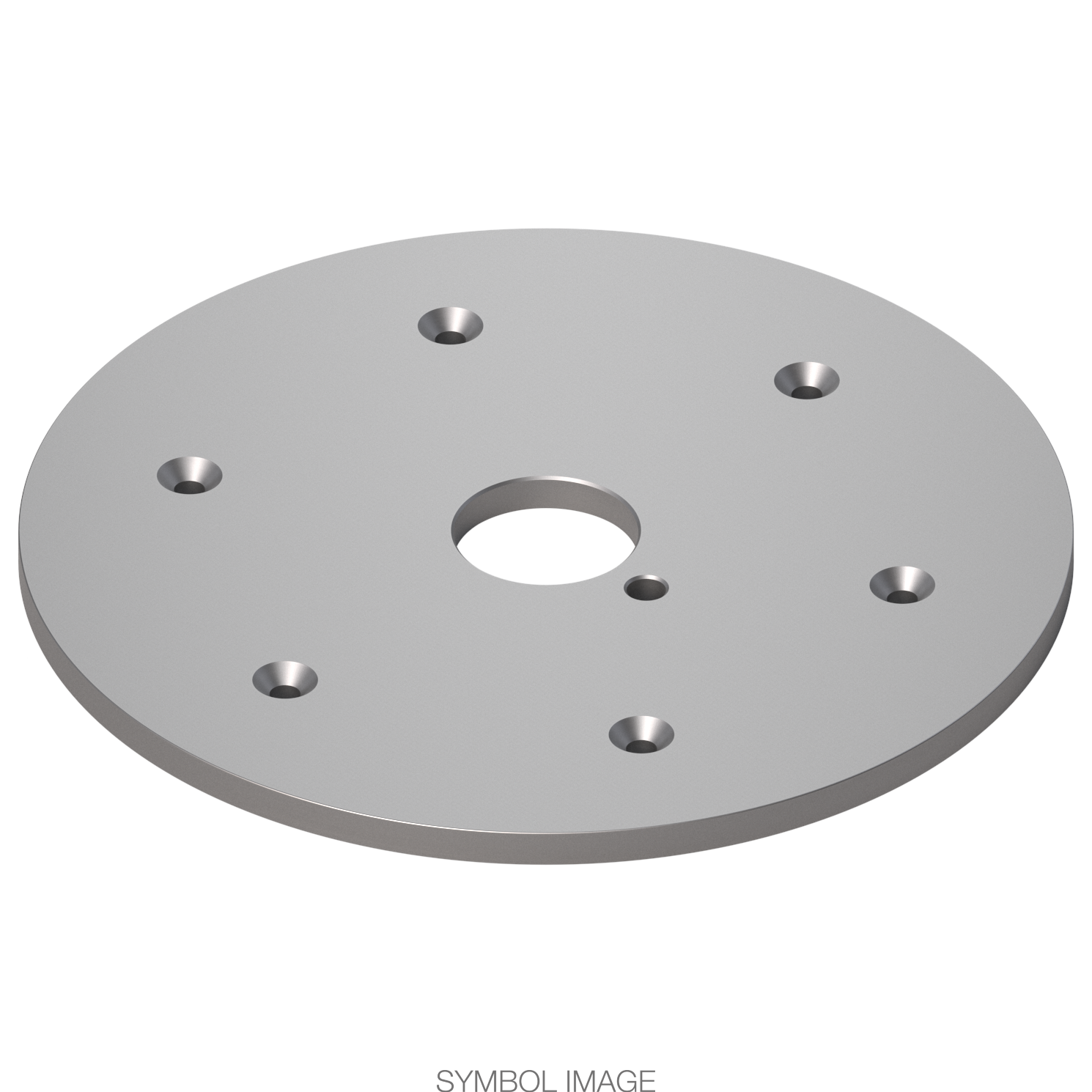

Support disc made of hardened steel - NG.2

S804-282

Product description

Support disc from hardened steel - NG.2
For use with non-hardened machine pallets surfaces for STARK.classic.NG-S.2 with 4 grooves
High wear resistance on non-hardened machine pallets surfaces
Strength tolerance 5 μ

Features:
- weight: approx. 0.8 kg

Scope of delivery:
- 1× support disc

Documents:
- catalogue: WM-020-450
- installation according to datasheet: D033

Downloads

Product catalogue

WM-020-450

STARK-classic_01-02_web

pdf / 6.59 MB
- DE
- EN
- ES
- FR
CAD model

STARK_S804-282_B
- Step
- Parasolid
Installation sheet

STARK_D033_C

pdf / 0.87 MB
- PDF
