Socket for torque wrench SW 17
131240017
HILMA.MCP
- HILMA.MCP clamping against fixed jaw, mechanically operated, jaw widths: 60, 100 and 125 mm
- HILMA.MCP Z concentric clamping, mechanically or hydraulically operated, jaw widths: 60, 100 and 125 mm
- HILMA.MCP ZB position flexible clamping, mechanically operated, jaw widths: 60, 100 and 125 mm
Application
The workholding systems HILMA.MCP are especially advantageous for 5-axis machining. The compact design allows a good accessibility of the tools to the workpiece. Collision-free tool paths and a 5-sided workpiece machining can be achieved with short standard tools. Due to the good swarf protection, workholding systems HILMA.MCP are particularly suitable for the use in pallet systems. The high force and stability obviate the need for pre-stamping of the workpieces.
Description
Workholding systems of the HILMA.MCP series excel by a very compact design and their patented segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum. Thus, a high rigidity of the workholding system is obtained. The patented segment design ensures a high degree of precision and stability. The guiding clearance is reduced to nearly zero. All essential components are made of hardened steel. The workholding systems of the HILMA.MCP series are already prepared for the use on zero point clamping systems. For this purpose, there are location threads for retractable nipples at the bottom side of the housing.
Advantages
- Patented segment design
- Clamping without deformation of workpieces by position flexible clamping point
- Clamping system also suitable for concentric clamping
- high zero-point stability
- Compact design
- High precision and accuracy of the manufactured workpieces by high rigidity
- Sturdy design and good swarf protection
- Large jaw openings
- Extensive range of jaws
- Clamping of raw and finished parts without retrofitting
- Easy to maintain
| Article Number | Product Label |
|---|---|
| 131240017 | Socket for torque wrench SW 17 |
| 131240020 | Socket for torque wrench SW 14 |
| 131240021 | Socket for torque wrench SW 12 |
| 169110002 | Hex key SW 6 |
| 169110003 | Hex key SW 8 |
| 169110005 | Hex key SW 10 |
| 550500470 | Interchangeable insert grip/smooth for insert width 32 mm |
| 550500471 | Interchangeable insert grip/smooth for insert width 65 mm |
| 550500509 | Interchangeable insert grip/smooth for insert width 125 mm |
| 550500523 | Interchangeable insert HM coarse/smooth for insert width 100 mm |
| 550500542 | Interchangeable insert grip/smooth for insert width 100 mm |
| 550500543 | Interchangeable insert grip/smooth for insert width 60 mm |
| 550500545 | Interchangeable insert grip/smooth for insert width 35 mm |
| 550500547 | Interchangeable insert grip/smooth for insert width 80 mm |
| 550500586 | Interchangeable insert TUC/smooth for insert width 100 mm |
| 550500635 | Interchangeable insert HM coarse/smooth for insert width 60 mm |
| 550500660 | Interchangeable insert HM coarse/smooth for insert width 125 mm |
| 550500723 | Interchangeable insert HM coarse/smooth for insert width 65 mm |
| 550500740 | Interchangeable insert HM coarse/smooth for insert width 35 mm |
| 550500741 | Interchangeable insert HM coarse/smooth for insert width 32 mm |
| 550500742 | Interchangeable insert HM coarse/smooth for insert width 80 mm |
| 550500743 | Interchangeable insert TUC/smooth for insert width 60 mm |
| 550500744 | Interchangeable insert TUC/smooth for insert width 35 mm |
| 550500745 | Interchangeable insert TUC/smooth for insert width 65 mm |
Socket for torque wrench SW 14
131240020
Socket for torque wrench SW 12
131240021
Hex key SW 6
169110002
Hex key SW 8
169110003
Hex key SW 10
169110005

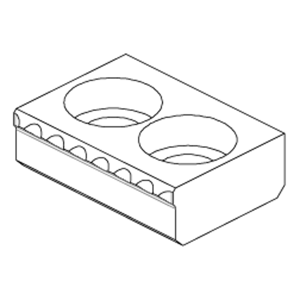

Interchangeable insert grip/smooth for insert width 32 mm
550500470 Grip/smooth

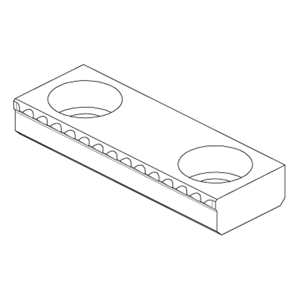

Interchangeable insert grip/smooth for insert width 65 mm
550500471 Grip/smooth
Interchangeable insert grip/smooth for insert width 125 mm
550500509 Grip/smooth
Interchangeable insert HM coarse/smooth for insert width 100 mm
550500523 Smooth/carbide
Interchangeable insert grip/smooth for insert width 100 mm
550500542 Grip/smooth

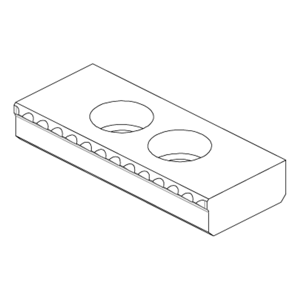

Interchangeable insert grip/smooth for insert width 60 mm
550500543 Grip/smooth

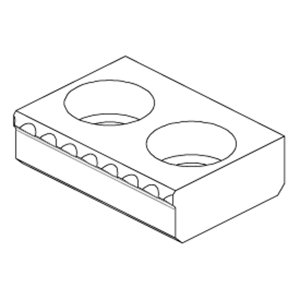

Interchangeable insert grip/smooth for insert width 35 mm
550500545 Grip/smooth

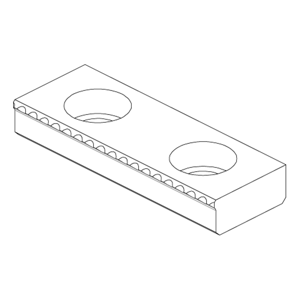

Interchangeable insert grip/smooth for insert width 80 mm
550500547 Grip/smooth
Interchangeable insert TUC/smooth for insert width 100 mm
550500586
Interchangeable insert HM coarse/smooth for insert width 60 mm
550500635 Smooth/carbide
Interchangeable insert HM coarse/smooth for insert width 125 mm
550500660 Smooth/carbide
Interchangeable insert HM coarse/smooth for insert width 65 mm
550500723 Smooth/carbide
Interchangeable insert HM coarse/smooth for insert width 35 mm
550500740 Smooth/carbide
Interchangeable insert HM coarse/smooth for insert width 32 mm
550500741 Smooth/carbide
Interchangeable insert HM coarse/smooth for insert width 80 mm
550500742 Smooth/carbide
Interchangeable insert TUC/smooth for insert width 60 mm
550500743 Smooth/TUC
Interchangeable insert TUC/smooth for insert width 35 mm
550500744 Smooth/TUC
Interchangeable insert TUC/smooth for insert width 65 mm
550500745 Smooth/TUC
HILMA.MCP 125 Z
The mechanical clamping system HILMA.MCP 100 Z concentric, mounted on a rapid change block "Quintus 2": Even complex workpieces are optimally accessible for the 5-side machining, short standard tools can be used without any problems and promise high precision even in complex operations. Tooling costs are reduced. The rapid change block Quintus allows the external setup. The result is less machine down time and increased efficiency of the entire system.
HILMA.MCP 60 H
Two hydraulically operated HILMA.MCPH 60 on a reversible clamping system with workpiece-specific clamping jaws for 4-axis complete machining. The hydraulic lines are directly in the base plates of the HILMA.MCPH 60.
